Dia42 175m Track Water Hole Drilling Machine

Name: Dia42 175m Track Water Hole Drilling Machine
Brand: Shitan
Price: 3200 USD

China Dia42 175m Track Water Hole Drilling Machine wholesale

Brand Name : Shitan

Model Number : XY-1

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD3200-6800/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000 sets/ year

Delivery Time : 7 days

Packaging Details : Wooden case packing

Size : 5M3

Name : 200M Track Minning Core Drilling Rig Machine

Color : Red/yellow/customized

Application : drilling core/ water well

Contact Now

100m To 200m Depth Easy Operate Water Well Drilling Tools Portable Drilling Rig

Portable Drilling Rig Description

Portable Drilling Rig is a kind of widely used portable drill. It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings . According to different strata, it drills by choosing diamond, composite films and alloy.

Portable Drilling Rig Application

Geological survey, geophysical exploration, road and high-rise building foundation survey, water wells, blasting holes and other drilling projects.

1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling

XY-1 Portable Drilling Rig specifications

XY-1 specifications
Drilling Capacity	Drilling Diameter(mm)	300	76	46
	Drilling depth(m)	25	135	175
	Drill pipe diameter	42
Turnplate	Revolving speed	48 100 200 350 650 (R/Min)
	MAX torque	2000Nm
	Feed stroke	400mm
Pump	Rated speed	2500 r/min
	Rated pressure	20Mpa
	Max pressure	25Mpa

Dia42 175m Track Water Hole Drilling Machine

Product Tags:

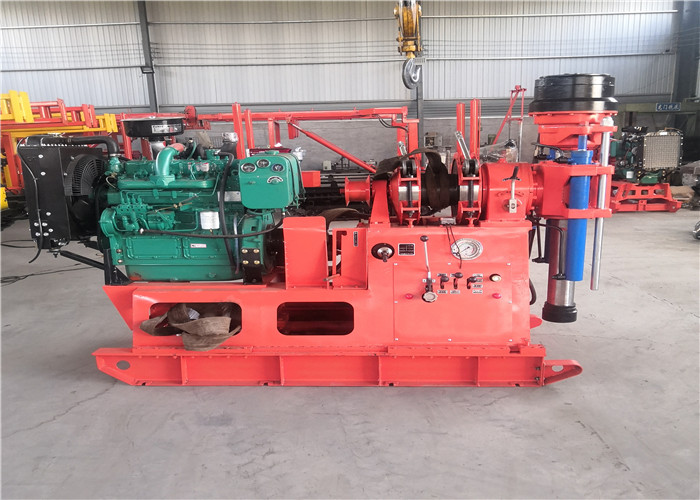

Dia42 175m Track Water Hole Drilling Machine Images
