XY -2 Borehole Drilling Machine For Coal And Oil / Well Digging Machine
Portable borehole core drilling machine water well drilling rig
Products Description
The XY-2 Kilometer is a lightweight shallow hole rig with oil pressure feed. Suitable for census exploration, geophysical exploration, road and building exploration, and small well drilling.
1. It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2, using the ball card type clamping mechanism, can achieve non-stop bar, easy to operate, safe and reliable.
3, the handle is concentrated, easy to operate. It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole.
4. Compact structure, the rig, water pump and power machine (diesel or electric motor) are assembled on the same base, occupying a small area of the airport. Light weight, high decomposability and easy to move.
Parameter:
| Drilling depth | 600 |
| Drilling angle | 0-360 |
| Vertical shaft stroke mm | 600 |
| Through hole diameter mm | 65 |
| Through hole diameter KN | 60 |
| Vertical shaft maximum pressure | 20KN |
| Max. pulling force KN | 70 |
| Max. torque KN | 300 |
| Winch max. lifting force | 30KN |
| Motor power | 22KW |
| Diesel engine(kw) | 33 |
| Dimension mm | 2150×900×1800 |
| Weight (without power) | 950KG |
Well Digging Machine Application:
1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.
2 Drilling bits can be chosen according to different strata .
Well Digging Machine Features
1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.
2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
Product Tags:
|
|

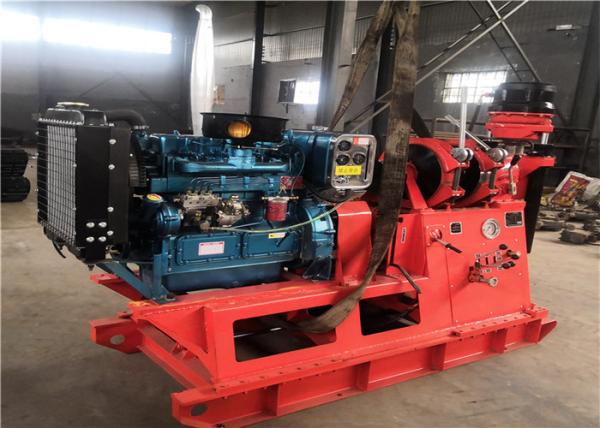

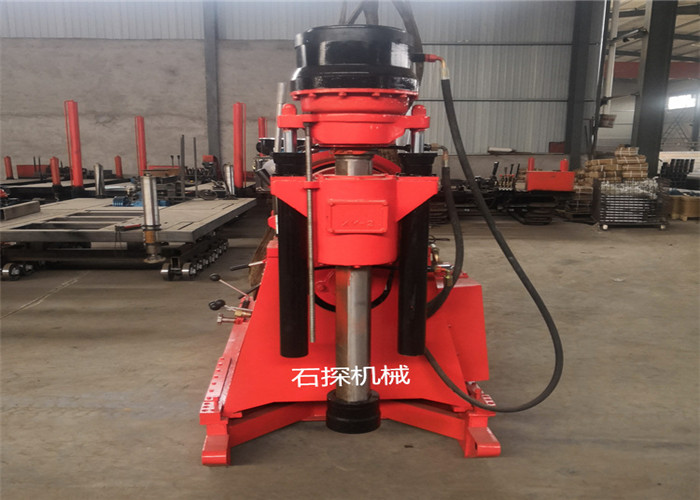

600M Water Well Drilling Rig Machine Images
|
