200m Drilling Depth Road / Railroad Construction GK200 Water Well Drilling Rig
Introduction to water well drilling rig
The XY-200F Water Well Drilling Rig Machine is suitable for drilling works such as water well drilling, general exploration, geophysical exploration, road and building exploration and so on.
Specifications
| GK 200 Drilling Rig |
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50,60 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1433 * 697 * 1273 (mm) |
| Rig weight (except engine) | 525 |
| Mobile device |
| Moving length | 350mm |
| Leave distance | 300mm |
| Gyrator |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.25 |
| Winch assembly |
| Winch maximum lifting force (single rope) | 15 |
| Reel speed (r/min) | 19,38,84,168 |
| Reel circumferential speed(m/s) | 0.166 0.311 0.733 1.465 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 35 |
| Brake diameter(mm) | 252 |
| Brake band width (mm) | 50 |
| Pump type | Horizontal single cylinder double acting |
| Maximum displacement (motor)(L/min) | 95 (77) |
| The maximum allowable pressure (Mpa) | 1.2 |
| Work pressure (Mpa) | 0.7 |
| Cylinder diameter (mm) | 80 |
| Piston stroke(mm) | 100 |
| Oil pump |
| Oil pump type | YBC-20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 2000 |
| Diesel engine or motor |
| Diesel engine | ZS1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
GK200 Water Well Drilling Rig Drilling Machine Introduction
200m Drilling Depth Road / Railroad Construction GK200 Water Well Drilling Rig
Have 8 postive rotation gear,high speed,strong torque,widely application.
Equip hydraulic chuck,it can complete no-stopping rotating.
Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to working
conditions in plain and mountain areas.
Application
Geological exploration
water and electricity engineering
road and railroad construction,
build engineering and big diameter water well construction project etc.
Product Tags:
|
|

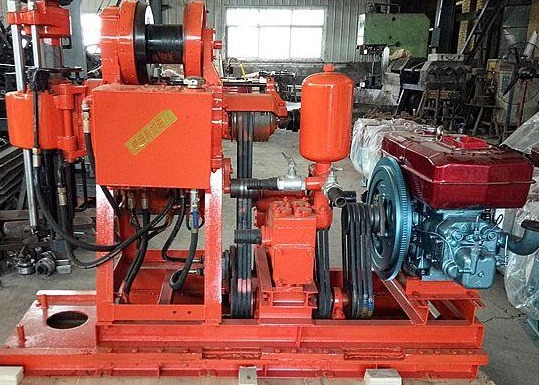

Railroad 200m Geological Prospecting Water Well Drilling Rig Machine Images
|
