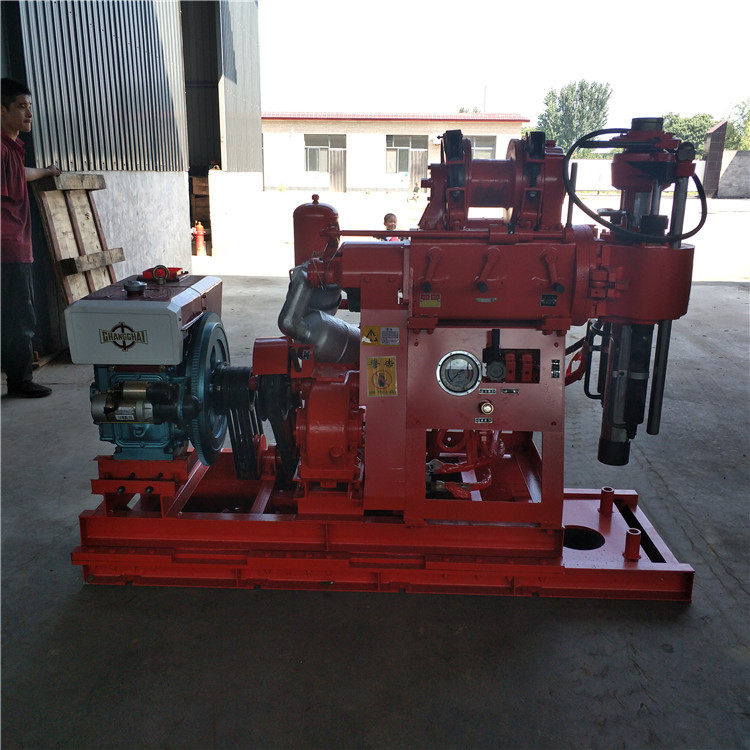

Without Air Compressor Engineering Machinery GK200 Water Well Drilling Rig
GK200 Water Well Drilling Machine Brief Introduction
A.53*59 drilling rod adopted,high rigidity and strong delivery torque.
the machine is equipped with national patent technology---taper clutch,with characteristic of strong transmission torque,easy operation and free maintenance.
B.for the winch,we use large module planetary gear and add supporting frame,greatly increasing hoisting and braking ability of the winch.
C.vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
D.we are the first one to equip mud pump with the flow 160L/min in china so that it will save cost and also make the machine compact,moblie and lightweight.
GK200 Water Well Drilling Machine Specifications
| Drilling depth | 200m |
| Open hole diameter | 75-300mm |
| End hole diameter | 75mm |
| Active drill rod | 53/59*4200mm |
| Rod diameter | 50,60mm |
| Drill angle | 90°-75° |
| Matched power(diesel power) | 15kw/2200r/min |
| Dimension | 2800*950*1700mm |
Drilling machinery can be used in large-scale field wells, oil wells and natural gas wells drilling equipment. It is a kind of surface drilling mechanical equipment, and also a kind of mobile single person small equipment. The following drilling machine manufacturer will tell you what to pay attention to in the use of drilling machinery.
1. Check that all exposed bolts, nuts, secure pins, etc. are secure.
2. Clean the external surface of the drilling rig, and pay attention to the cleaning and excellent smoothness of the rig substructure slide, vertical shaft, etc.
3. Add oil or grease as required.
4. Check the oil level of gearbox, transfer case and hydraulic system oil tank.
5. Check the situation of oil leakage all over the place and deal with it according to the situation.
6. Eliminate other problems in the class.
