XY-1A 150 Meters Water Well Drilling Rig Borehole Depth With Compact Structure
Product Description

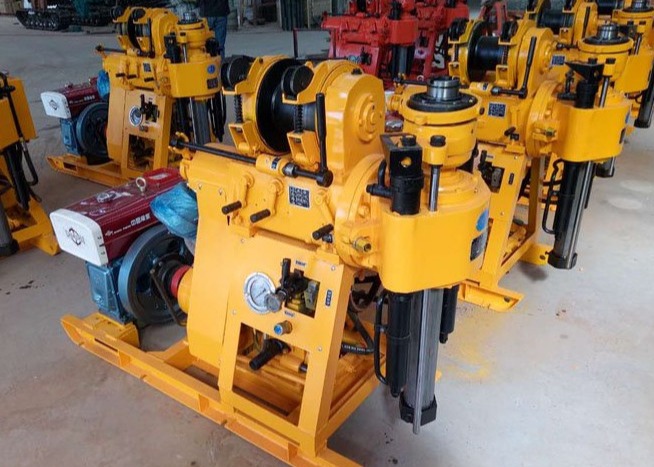

XY-1A Core Drilling Rig is a light type machine at high speed with hydraulic feeding.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
Product Main parameters
| Parameter |
| Drilling depth | 150--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
Product Main Features
a. the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
Product Applications
XY-1A drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees,earth temperature central air-conditioner,etc;Core mining exploration, Or exploration;Small hole diameter water well drilling;Geothermal pipe-installing for heat pump;Small-diameter hole foundation piling drilling.
How do the drillers replace the bit?
During drilling, the power of the drilling rig drives the rotary table, Kelly, drill pipe and drill bit to rotate. Observe the working condition of the down hole drill bit through the instruments on the ground of the drilling rig. After comprehensive judgment, if the drill bit is considered to have been worn, stop drilling immediately and replace the drill bit. After the drilling is stopped, the drilling fluid circulation shall be maintained for a period of time. The purpose is to adjust the performance of the drilling fluid, bring the rock cuttings suspended in the drilling fluid out of the ground, circulate to keep the new borewell wall stable, and conduct routine inspection of the drilling equipment. The driller uses the crown block, traveling block and hook on the derrick to pull out all drilling tools from the well according to the height of the derrick and the column (usually composed of two or three drill pipes). After pulling out, the drill pipe column is discharged into the derrick in sequence. While lifting the down hole drill string, the drilling fluid shall be continuously injected into the annular space with the drilling pump to keep the liquid level in the borewell from falling, so that the pressure in the borewell can balance the formation pressure, so as to prevent the borewell from collapsing or the fluid in the down hole formation from entering the borewell. At the same time, pay special attention to the possible sticking of the drill pipe due to the wall shrinkage, and the operator shall strictly control the lifting speed. After all the drill pipes and drill collars in the borewell are pulled out, the drill bits to be replaced will be pulled out at the same time. The workers can resume drilling after unloading the old drill bits, installing new drill bits and lowering them into the well according to the original column sequence.
